CABLE CAM SYSTEMS FAQ
3D Cable Camera Systems with AR Tracking for Live Sports and TV Studios

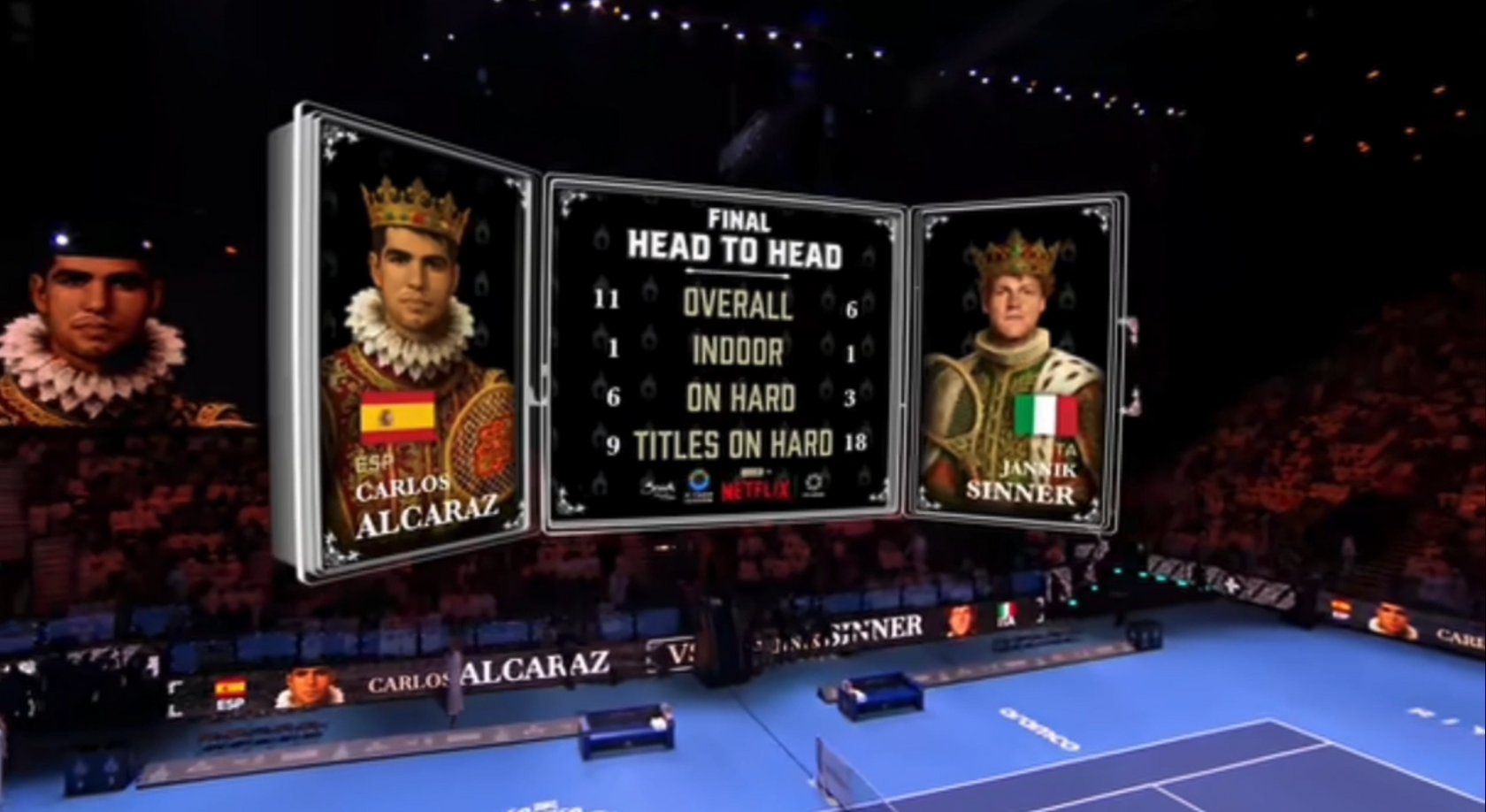

JoyMechanix develops and manufactures four-point 3D cable camera systems with tracking output for augmented reality broadcasts. The range includes JM 1.3 Studio for TV studios and smaller venues, and JM 2.3 Universal for larger arenas and stadiums. An AR configuration can combine cable camera position, gimbal orientation and lens zoom and focus data for delivery to a graphics system. JoyMechanix supports FreeD output; the complete camera and graphics configuration should be verified for the proposed project.
Which cable camera should you choose for AR?
Start with the physical camera movement. JM 1.3 Studio is the starting point for studio installations and smaller production spaces. JM 2.3 Universal is designed for larger indoor and outdoor venues, including sports arenas and stadiums. Both belong to the JoyMechanix 3D cable camera range.
The choice depends on the required shots, rigging geometry and camera package. Identify where the camera must travel and what it must frame before selecting the tracking configuration. A studio presentation and a stadium broadcast can need different movements even when both use virtual graphics.
What tracking information does the system provide?
The JoyMechanix AR workflow brings together the position of the cable camera, the orientation of the gimbal, and lens zoom and focus information. These signals are combined into a synchronized output for the AR server. FreeD is a supported protocol. Raw tracking data can also be provided for third-party integration where required.
For a proposed installation, specify the camera, lens, head, graphics platform and synchronization requirements. This makes the integration discussion concrete: the production team can establish which data are available, how the receiving system will use them and what equipment or configuration is needed.
How does Black Swan fit into the workflow?
The JoyMechanix Black Swan head provides native integration with the cable camera control system. This includes coordinated camera and lens control, AR data and programmable motion in which platform movement and head movement are synchronized.
Third-party heads are also an option. Their suitability depends on the required control and tracking functions. Some integrations require additional equipment or custom development. If synchronized, repeatable movement is part of the brief, include the head and its control interface in the initial specification.
Does FreeD support confirm graphics-platform compatibility?
FreeD support identifies an available tracking interface. A production-ready integration also needs an agreed configuration and a practical test with the intended camera, lens, graphics software and synchronization setup.
Before deployment, agree who will configure the tracking input, establish the coordinate system, calibrate the camera and lens, and verify graphics alignment during the planned shots. Record the software versions and tested configuration so that the production team has a clear reference for commissioning and later changes.
Where has JoyMechanix cable camera AR been used?
The JoyMechanix project gallery includes the JM 2.3 cable camera with augmented reality at Super Rugby Pacific’s Super Round in Christchurch, New Zealand. It also includes a TV studio application in India using a JoyMechanix 3D cable camera for cricket coverage with AR. These are useful references when discussing sports and studio requirements.
Discuss your AR camera setup
Send JoyMechanix your venue layout, planned camera movements, camera and lens models, preferred head and graphics platform. Include the intended installation dates and any synchronization requirements. The resulting specification should identify the cable camera model, tracking interfaces, required options and integration work.
For more detail, read the Technical FAQ and Black Swan integration guide, or contact JoyMechanix to discuss a configuration.
